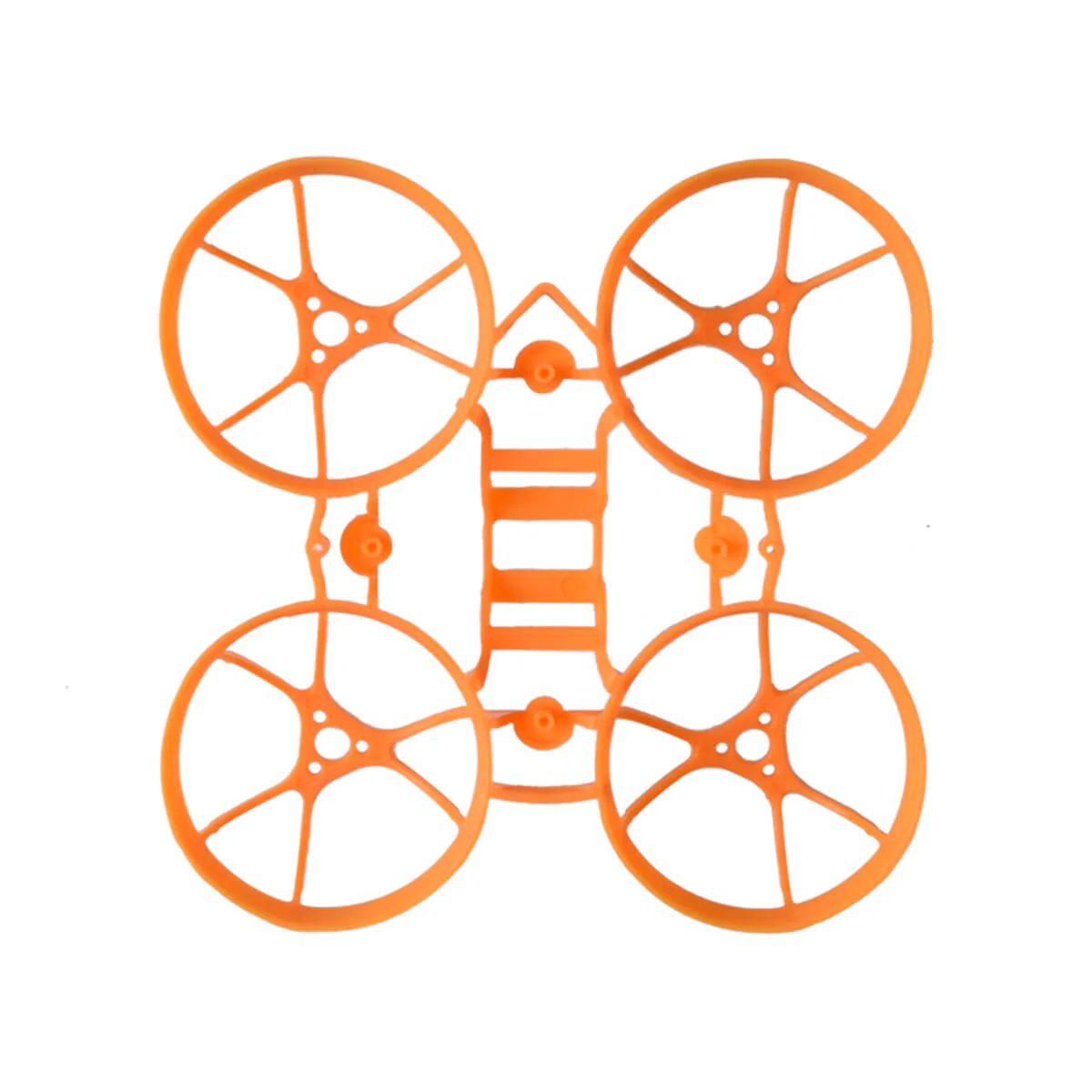

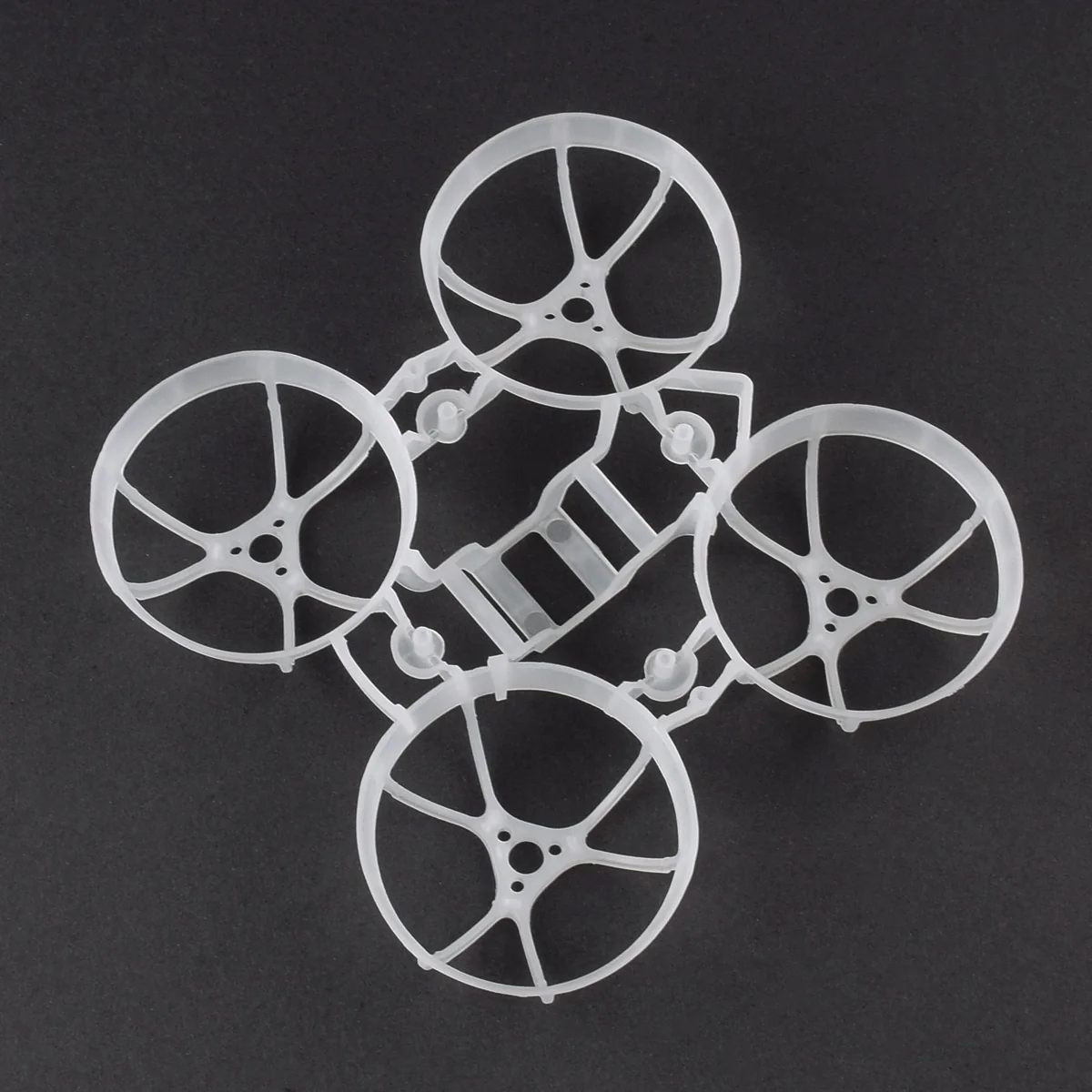

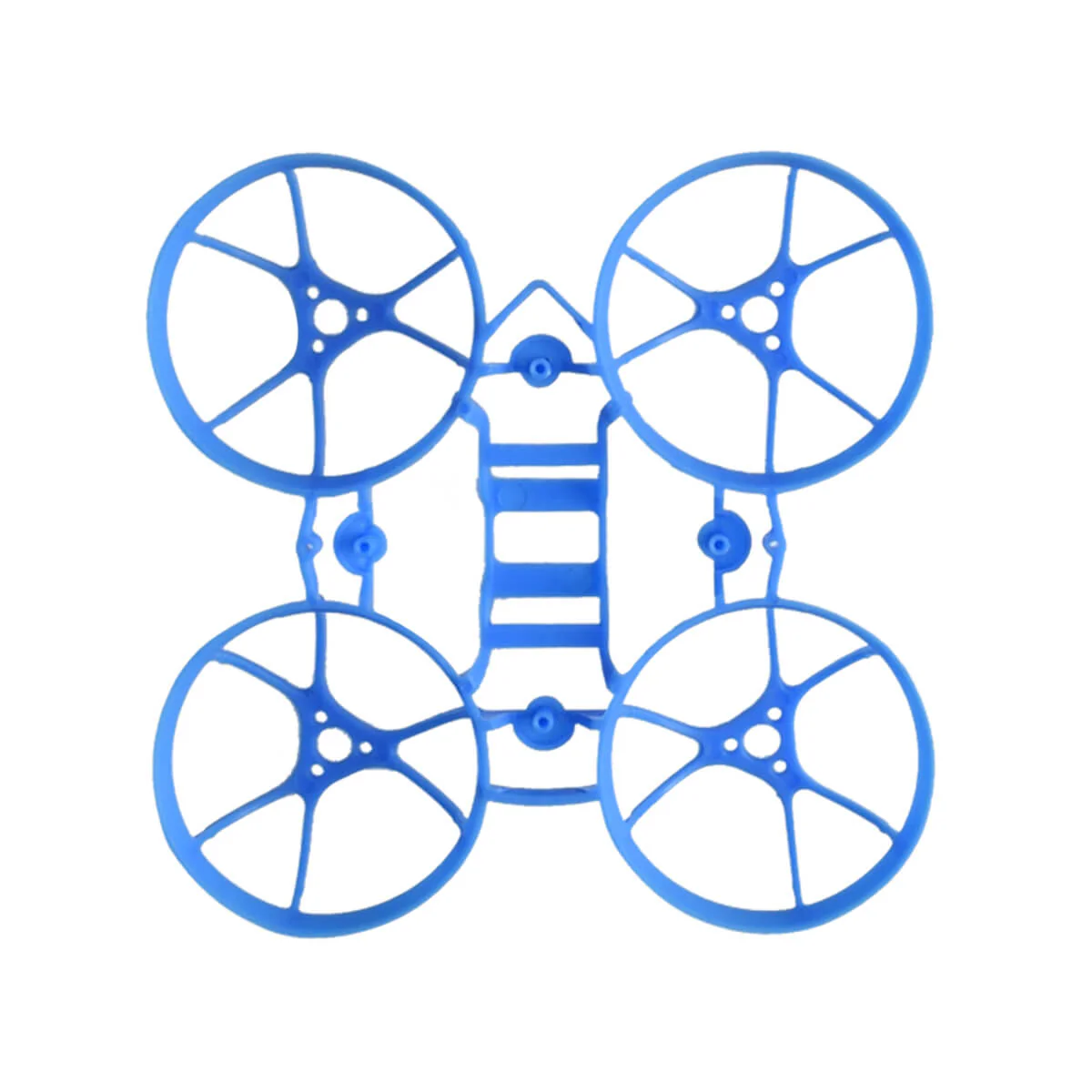

Latest appearance of 65mm 1S brushless frame for Meteor65 Brushless Whoop Quadcopter. With a marvellous design on battery slot which keeps a low profile and triangle bilateral stretch structure of motor mounting position, this frame wights 3.14g only.

Bullet Point

• Compared to previous 65mm brushless frames, with the low profile of battery slot height, the drone's gravity center is reduced and improved the sense of compactness.
• Meteor65 1S brushless frame’s motor mounting position uses triangle bilateral stretch structure, makes frame more aesthetic. It provides you more durable and smoother flight experience.
• The ultra-light and durable frame is PP material only 3.14g, which is one of the lightest frames with 26mm*26mm FC mounting columns can match whoop style flight controller.
• The material of 31mm 3-blade props is PC plastic with the 1.0mm shaft inner diameter. Suitable for 0603 and 080X series brushless motors.

Specification

• Item: Meteor65 frame
• Material: PP
• Size: 65mm
• Weight: 3.14/pc
• Color: Transparent/Blue/Black/Green/Pink/Orange
• Motor mounting hole: For 0603 motor and 080X Series Motors
• FC mounting hole: 26mm x 26mm, fully compatible with whoop style FC board mounting pattern

Upgrade

• With the low profile of battery slot height, the drone's gravity center is reduced and improved the sense of compactness.

Recommended Parts

• Propellers: 31mm 3-blade props
• Motors: 0603 and 080X Series Brushless Motors.
• Batteries: BT2.0 300mAh 1S Battery
• Screws: Meteor Series Motor Fixing Screws Pack (40PCS)
• FC: F4 1S Brushless FC

Package

• 1 * Meteor65 Micro Brushless Whoop Frame

This plastic durable package can protect the package from deformation during the shipping process.
